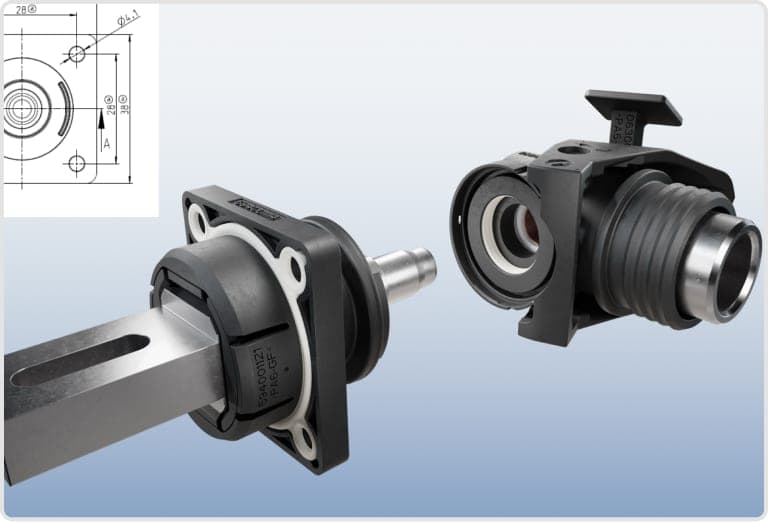

AKNH High Current Quick Connector 90°
Housing 90° with quick lock and Ø 8 mm pin, in several colours and codings.
- Protection class
- IP6K9K
- Voltage
- max. 48 V DC
- Operating temperature
- -40 … +120 °C
- Flammability rating
- UL94V-0
AKNH-Hochstromsteckverbindung
Plug in instead of screwing
Time and cost savings in mounting
AKNH high-current connectors are plugged in instead of screwed: the connection is made in less than 3 seconds, bypassing torque and rotation angle monitoring. Very low contact resistance and high contact reliability at vibrations ensure a connection without power interruptions.
- Current rating
- ≤ 400 A
- Contact resistance
- < 30 µΩ
- Protection class
- IP6K9K
- Connection time
- < 3 s
Your advantages
- Plug-in instead of screwing: bypass torque and rotation angle monitoring
- Process reliability due to secondary lock
- High contact reliability at vibrations without power interruptions
- Very low contact resistance, low contact heating at high currents
- Various colours and codings available to reduce the error rate
- Cable cross-section up to 95 mm² for standard and fine-stranded wires
Variants

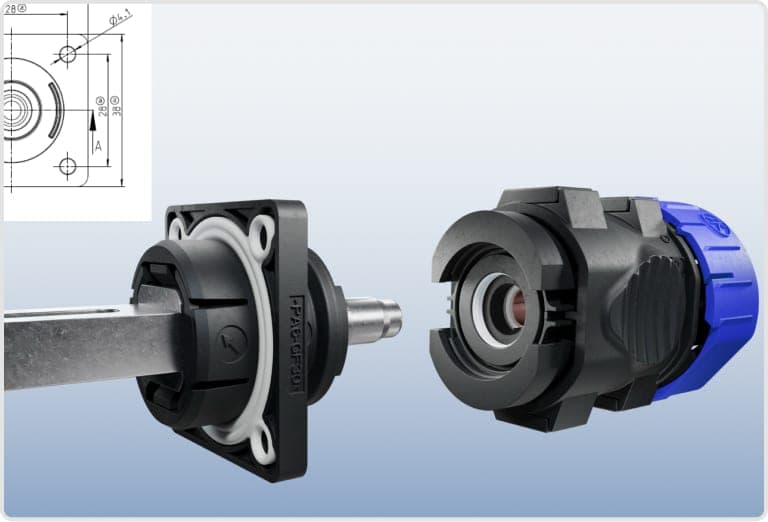

AKNH High Current Quick Connector 180°
Housing 180° with quick lock and Ø 8 mm pin, in several colours and codings.
- Protection class
- IP6K9K
- Voltage
- max. 48 V DC
- Pin diameter
- 8 mm
- Cable cross-section
- ≤ 95 mm²

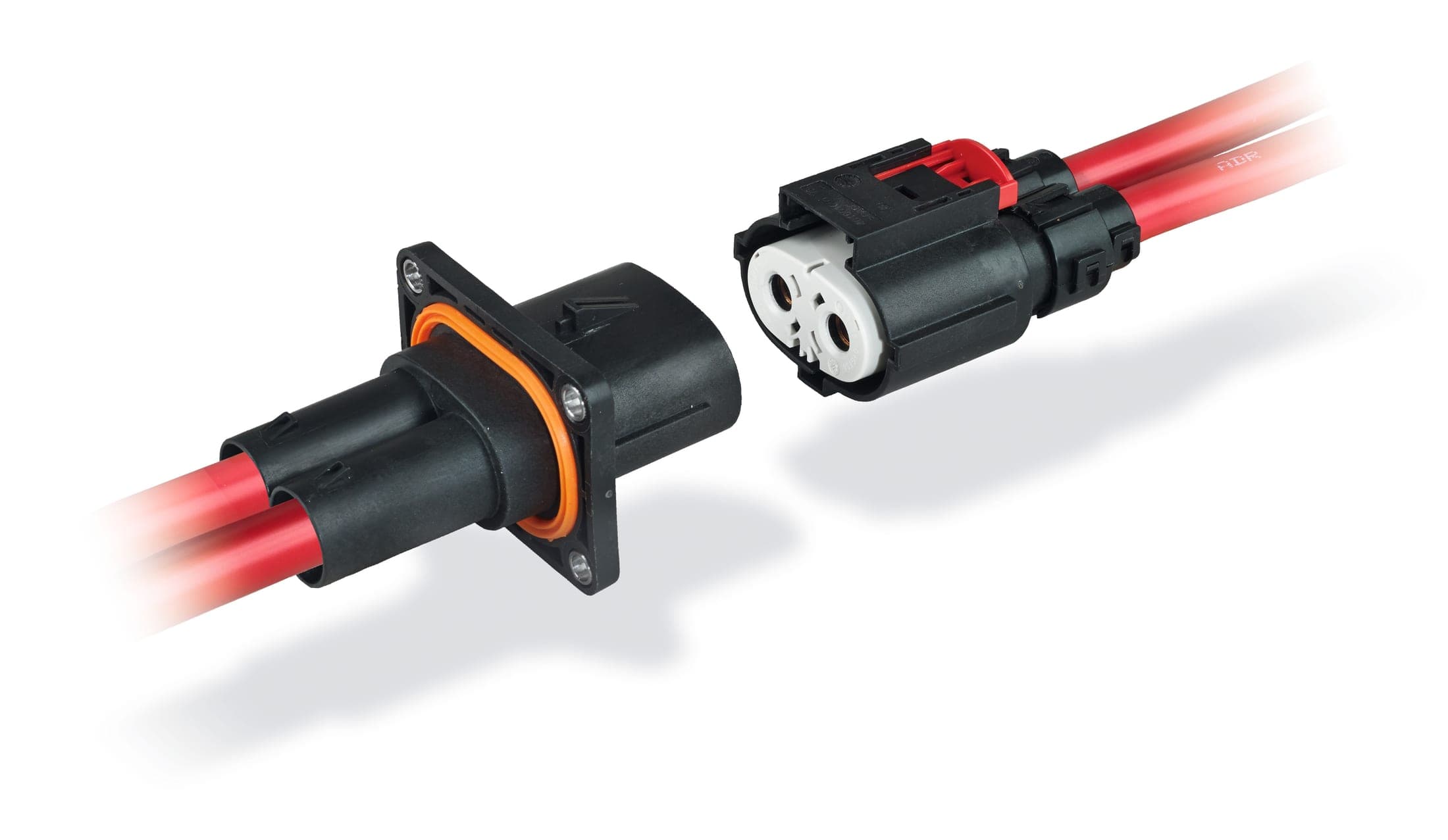

2-pole high-current connector IP6K9K 0 - 48 V
Compact 2-pole connector with secondary lock and seals.
- Continuous current
- 250 A
- Cross-section
- 2 x 50 mm²
- Mating cycles
- > 10.000
- Temperature, short term +150 °C
- -40 … +125 °C

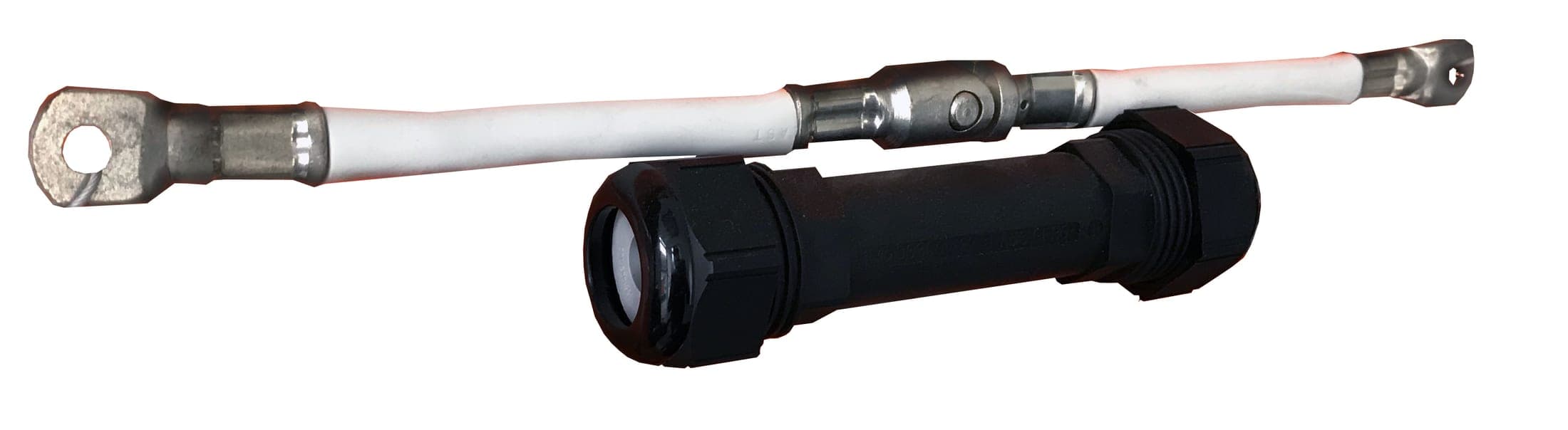

Connection tube IP6K9K for 1-pole high-current or 10-pole signal connections
Connection tube with M32 screw connection, with or without mounting socket.
- Current rating
- ≤ 400 A
- Plug-in force
- < 30 N
- Strain relief
- > 3.000 N
- Screw connection
- M32
